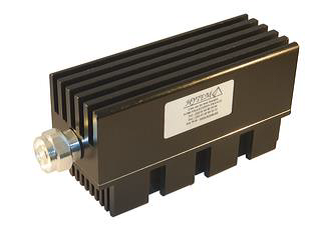

Фиксированные аттенюаторы



- ослабление от 1 до 60 dB

- входная мощность от 1 Вт до 80 кВт

- частотный диапазон от DC до 65 ГГц

- версиис низкой интермодуляцией Low PIM

- возможно специальное исполнение по размерам заказчика

- варианты разъемов : SMA, N, 7/16, 4.1/9.5, 4.3/10...



Модель

Частота

Ослабление

Макс. Мощность

 Разъем №1

 Разъем №2

 Исполнение

03.02.528

DC-1000 MHz

6dB +/- 0,3 dB

100W CW

N male

N female

Standard

03.02.619

DC-18000 MHz

10dB -2,0/+2,5 dB

100W CW @25°C

SMA male

SMA female

Round

03.02.620

DC-18000 MHz

20dB -2,0/+2,0 dB

100W CW @25°C

SMA male

SMA female

Round

03.02.625

DC-18000 MHz

10dB -2,0/+2,5 dB

100W CW @25°C

N male

N female

Round

03.02.626

DC-18000 MHz

20dB -2,0/+2,0 dB

100W CW @25°C

N male

N female

Round

03.02.621

DC-18000 MHz

30dB -1,0/+1,0 dB

100W CW @25°C

SMA male

SMA female

Round

03.02.627

DC-18000 MHz

30dB -1,0/+1,0 dB

100W CW @25°C

N male

N female

Round

03.02.622

DC-18000 MHz

10dB -1,5/+5,0 dB

250W CW @25°C

N male

N female

Round

03.02.623

DC-18000 MHz

20dB -2,5/+5,0 dB

250W CW @25°C

N male

N female

Round

03.02.624

DC-18000 MHz

30dB -1,0/+2,5 dB

250W CW @25°C

N male

N female

Round

03.02.455

DC-26000 MHz

10dB +/- 1 dB

2W CW

SMA male

SMA female

Standard

03.02.121E

DC-3000 MHz

40dB +/- 3 dB

100W CW

7/16 male

N female

Standard

03.02.223E

DC-3000 MHz

6dB +/- 0,3 dB

100W CW

N male

N female

Standard

03.02.226E

DC-3000 MHz

30dB +/- 2 dB

100W CW

N male

N female

Standard

03.02.227E

DC-3000 MHz

40dB +/- 3 dB

100W CW

N male

N female

Standard

03.02.232E

DC-3000 MHz

30dB +/- 2 dB

100W CW

N female

N female

Standard

03.02.326

DC-3000 MHz

20dB +/- 1 dB

100W CW

7/16 male

N female

Standard

03.02.385

DC-3000 MHz

30dB +/- 3 dB

100W CW

7/16 male

N female

Standard

03.02.437

DC-3000 MHz

50dB +/- 3 dB

100W CW

7/16 male

N female

Standard

03.02.461

DC-3000 MHz

50dB +/- 3 dB

100W CW

N male

N female

Standard

03.02.474

DC-3000 MHz

10dB +/- 1 dB

100W CW

7/16 male

N female

Etroit / Narrow

03.02.514

DC-3000 MHz

20dB +/- 1 dB

100W CW

7/16 male

N female

Etroit / Narrow

03.02.532

DC-3000 MHz

20dB +/- 1 dB

100W CW

7/16 female

N female

Standard

03.02.533

DC-3000 MHz

40dB +/- 1 dB

100W CW

7/16 male

N female

Etroit / Narrow

03.02.569

DC-3000 MHz

20dB +/- 1 dB

100W CW

4.3/10 male

N female

Standard

03.02.602

DC-3000 MHz

10dB +/- 1 dB

100W CW

4.3/10 male

N female

Etroit / Narrow

03.02.614

DC-3000 MHz

30dB +/- 2 dB

100W CW

7/16 male

N female

IP54

03.02.615

DC-3000 MHz

30dB +/- 2 dB

100W CW

4,3-10 male

N female

IP54

03.02.616

DC-3000 MHz

40dB +/- 3 dB

100W CW

4.3/10 male

N female

Etroit / Narrow

03.02.604

DC-3000 MHz

1dB +/- 0,4 dB

10W CW

N mâle

N female

Round

03.02.605

DC-3000 MHz

2dB +/- 0,4 dB

10W CW

N mâle

N female

Round

03.02.606

DC-3000 MHz

3dB +/- 0,4 dB

10W CW

N mâle

N female

Round

03.02.607

DC-3000 MHz

30dB +/- 2 dB

150W CW

7/16 male

N female

Rectangular

03.02.631

DC-3000 MHz

30dB +/- 2 dB

150W CW

N female

N female

Rectangular

03.02.489

DC-3000 MHz

23dB +/- 0,8 dB

2W CW

SMA male

SMA female

Standard

03.02.516

DC-3000 MHz

12dB +/- 0,6 dB

2W CW

SMA male

SMA female

Standard

03.02.435

DC-3000 MHz

20dB +/- 2 dB

30W CW

BNC female

BNC female

Standard

03.02.302

DC-3000 MHz

3dB +/- 0,3 dB

50W CW

N male

N female

Standard

03.02.303

DC-3000 MHz

6dB +/- 0,3 dB

50W CW

N male

N female

Standard

03.02.304

DC-3000 MHz

10dB +/- 1 dB

50W CW

N male

N female

Standard

03.02.305

DC-3000 MHz

20dB +/- 1 dB

50W CW

N male

N female

Standard

03.02.306

DC-3000 MHz

30dB +/- 2 dB

50W CW

N male

N female

Standard

03.02.307

DC-3000 MHz

40dB +/- 2 dB

50W CW

N male

N female

Standard

03.02.313

DC-3000 MHz

40dB +/- 3 dB

50W CW

N male

N female

Standard

03.02.314

DC-3000 MHz

3dB +/- 0,3 dB

50W CW

7/16 male

7/16 female

Standard

03.02.315

DC-3000 MHz

6dB +/- 0,3 dB

50W CW

7/16 male

7/16 female

Standard

03.02.316

DC-3000 MHz

10dB +/- 1 dB

50W CW

7/16 male

7/16 female

Standard

03.02.317

DC-3000 MHz

20dB +/- 1 dB

50W CW

7/16 male

7/16 female

Standard

03.02.318

DC-3000 MHz

30dB +/- 2 dB

50W CW

7/16 male

7/16 female

Standard

03.02.436

DC-3000 MHz

50dB +/- 3 dB

50W CW

7/16 male

N female

Standard

03.02.460

DC-3000 MHz

50dB +/- 3 dB

50W CW

N male

N female

Standard

03.02.468

DC-3000 MHz

40dB +/- 3 dB

50W CW

4.1/9.5 male

N female

A queue / Tail

03.02.571

DC-3000 MHz

20dB +/- 1,5 dB

75W CW

N female

N female

Etroit / Narrow

03.02.572

DC-3000 MHz

30dB +/- 2 dB

75W CW

N female

N female

Etroit / Narrow

03.02.590

DC-4000 MHz

60dB +/- 3 dB

100W CW

7/16 male

N female

Standard

03.02.593

DC-4000 MHz

60dB +/- 3 dB

100W CW

7/16 male - IN

N female - OUT

Round

03.02.596

DC-4000 MHz

40dB +/- 2 dB

100W CW

7/16 male - IN

N female - OUT

Round

03.02.549

DC-4000 MHz

60dB +/- 3 dB

60W CW

7/16 male

N female

Etroit / Narrow

03.02.551

DC-4000 MHz

60dB +/- 3 dB

60W CW

N male

N female

Etroit / Narrow

03.02.560

DC-4000 MHz

40dB +/- 3 dB

60W CW

7/16 male

N female

Etroit / Narrow

03.02.592

DC-4000 MHz

60dB +/- 3 dB

60W CW

7/16 male - IN

N female - OUT

Round

03.02.555

DC-6000 MHz

40dB +/- 3 dB

100W CW

N female

N female

Standard

03.02.609

DC-6000 MHz

20dB +/- 1 dB

25W CW

SMA mâle

SMA female

Round

03.02.610

DC-6000 MHz

20dB +/- 1 dB

25W CW

SMA female

SMA female

Round

03.02.107

DC-6000 MHz

1dB +/- 0,5 dB

2W CW

SMA male

SMA female

Standard

03.02.108

DC-6000 MHz

2dB +/- 0,5 dB

2W CW

SMA male

SMA female

Standard

03.02.109

DC-6000 MHz

3dB +/- 0,5 dB

2W CW

SMA male

SMA female

Standard

03.02.110

DC-6000 MHz

6dB +/- 0,5 dB

2W CW

SMA male

SMA female

Standard

03.02.111

DC-6000 MHz

10dB +/- 1 dB

2W CW

SMA male

SMA female

Standard

03.02.112

DC-6000 MHz

15dB +/- 1 dB

2W CW

SMA male

SMA female

Standard

03.02.378

DC-6000 MHz

20dB +/- 1 dB

2W CW

SMA male

SMA female

Standard
